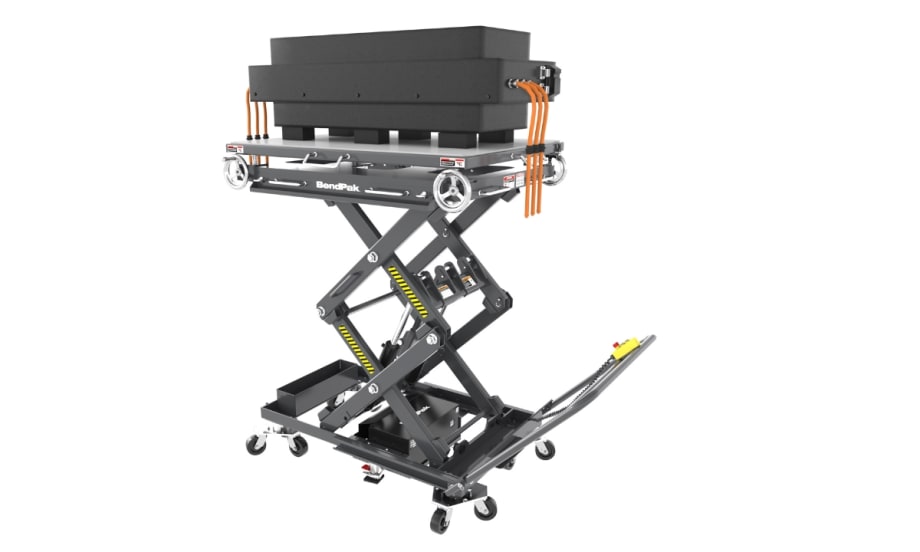

The new BendPak Mobi-EVS4500 and EVS3000 models are powered by a heavy-duty 12-volt DC power unit with deep-cycle battery, so there are no extension cords or air lines to get in the way.

Updates to the new Mobi-EVS models include lowering the center-of-gravity, redesigning the base frame and scissor assemblies, increasing use of high-tensile steel, widening the safety assembly, and increasing weld sizes throughout.

BendPak engineers also improved the patent-pending tilt-deck table to make it even easier to adjust and to improve overall stability.

Maximizing Efficiency and Enhanced Mobility

Durable and impact-resistant ultra-high molecular weight (UHMW) polyethylene protects the tabletop from wear and tear, serves as an insulation barrier, and provides a low-friction surface to enable technicians to shift heavy components with less effort.

Mobi-EVS can help technicians maximize efficiency by keeping tools close-at-hand. In addition to the full-length utility trays featured on both sides of all Mobi-EVS models, the new EVS4500 and EVS3000 offer fore and aft storage bin options for organizing tools and adapters.

The new models also provide enhanced mobility. They have an all-new, full-width, U-shaped push/pull handle that offers greater control when moving the lift around the shop. The handle stows in the base when not needed.

Streamling Operator Control for Work

The upgraded easy-glide, multi-directional swivel casters allow the operator to move the table and change direction effortlessly, while a new tri-caster locking pin improves straight-line travel.

A single person can control Mobi-EVS operation with the attached pendant controller. With a press of the button, the approximately 43 x 63-inch lift platform rises more than 6 feet in 18 seconds. The Multi-Point Safety Lock system engages automatically while lifting and is readily disengaged by pushing a button on the pendant controller.

Safe, Precise Lifting, and Versatility

Multiple recessed anchoring locations on the platform surface accommodate a variety of modular fixtures, adapters, and accessories for maximum versatility. Screw jacks provide easy roll, pitch and yaw adjustments for precise alignment and leveling of EV batteries and other components.

The Mobi-EVS4500 has a rated lift capacity of 4,500 pounds — enough to tackle a full range of EVs from cars to commercial trucks. The Mobi-EVS3000 can lift up to 3,000 pounds.
