Cat Skeleton Buckets Feature Heavy-Duty Construction

Cat Skeleton Buckets are used primarily to separate rocks and large debris from soil and sand.

Caterpillar
November 22, 2018
Cat Skeleton Buckets Feature Heavy-Duty Construction

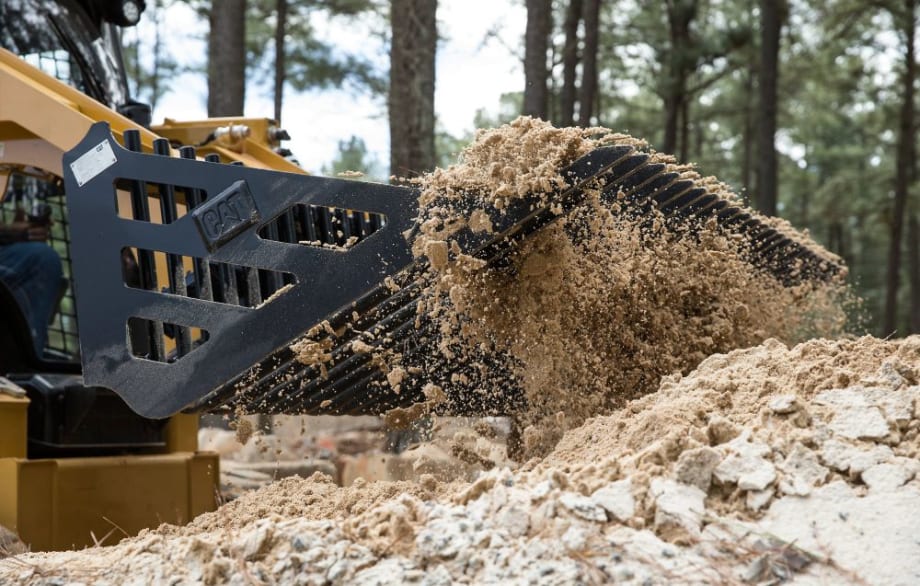

Caterpillar Skeleton Bucket widths range from 79 to 94 inches.

Photo courtesy of Caterpillar

2 min to read


Cat Skeleton Buckets are used primarily to separate rocks and large debris from soil and sand. They are designed for use with skid steer loaders, multi-terrain loaders, compact track loaders, and compact wheel loaders. The skeleton buckets are used in a number of industries, including agriculture, construction, land clearing, demolition, landscaping, and scrap handling.

There are three bucket options, with widths that range from 79 to 94 inches.

In basic construction, Cat Skeleton Buckets use heavy steel rods, 1.25 inches in diameter on 3.75-inch centers, to form the floor and back of the bucket. Thick plates with rectangular openings form the sides of the bucket, and a rectangular frame, fabricated of heavy-duty steel and incorporating two steel plate rock dams, strengthens the back of the bucket. The rock dams serve to retain material, reducing spillage.

For added durability, steel gussets are welded between the outermost rods in the bucket floor and the sides of the bucket. The forward ends of the rods in the bucket floor are secured in a heavy-duty support beam positioned between (and welded to) the bucket sides. This beam not only provides support, but allows the bucket to also be used for grading.  Welded to the forward tips of the rods and support beam are heavy steel tines that enhance breakout force by initially separating rock and debris from soil more effectively than could a solid cutting edge.
