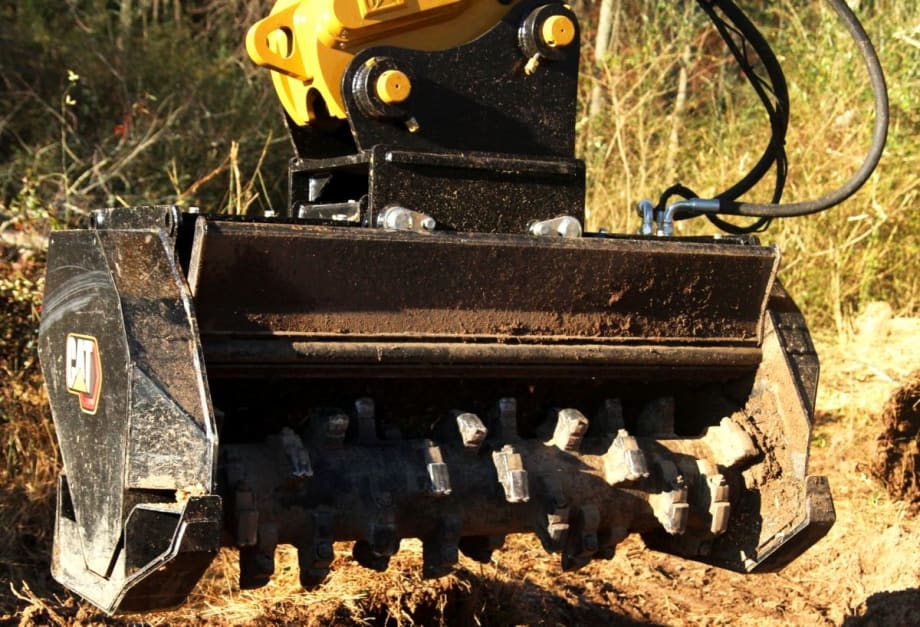

Two new Cat mulchers for tracked and wheeled excavators and forest machines deliver reliable operation in tough forestry applications. These mulchers incorporate a number of safety features to protect both workers and equipment at the jobsite. With the addition of the new Cat HM3013 and HM5515 models, Caterpillar now offers a mulcher attachment for Cat front-reach machines from 11 to 36 tons and long-reach front machines from 40 to 52 tons.

The HM3013 has a new dedicated bite limiter drum, while the HM5515 offers a standard drum. Featuring an aggressive edge of the blade with the limiter and counter knives, the dedicated bite limiter of the HM3013 produces a fine final product. The bite limiter drum design excels in mulching applications where rocks are minimal with large amounts of standing timber.

Key components on the mulchers factor into their consistent, reliable performance. The variable torque hydraulic piston motor shifts between high speed, low torque and low speed, high torque to deliver speed and power when it’s needed. Hardened counter blades mounted inside the housing help break down the finished material, which can increase the rate of composting.

Multiple service panels on each model provide easy access for quick adjustments for maintenance. Further simplifying maintenance and reducing downtime, internal components can be easily removed in the field through the access panels. The poly chain belt drive transmission eliminates slippage on startup, increasing reliability and reducing maintenance costs. Most of the wear parts are made to be field-replaceable to keep the units working at peak efficiency.

The ability to adjust the hydraulic mulching door allows the operator to control the material throw, increasing operating safety, especially critical on roadside clearing applications or when working near power lines. Ground-level primary grease points increases daily maintenance safety. Bolt-on, replaceable skids keep the mulcher from digging into the ground or into materials that can increase wear or cause damage.
