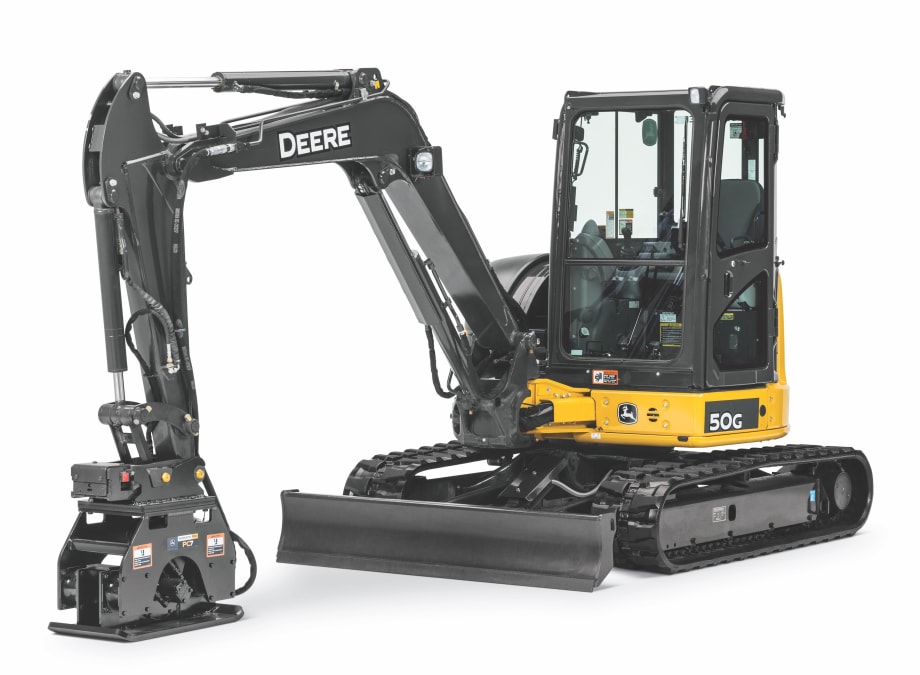

John Deere’s new PC4, PC7, and PC10 vibratory plate compactors are designed for trench, slope, and excavation compaction applications. These attachments are compatible with the John Deere 26G, 30G, 35, 50G, and 60G compact excavators; the 310L, 310L EP, 310SL, 310SL HL, 315SL, and 410L backhoes; as well as most competitive models.

A large eccentric rotating weight creates vibration and impulse energy to deliver the optimal attachment productivity and performance. The weight’s mass is further away from the shaft to provide increased impulse forces up to 8,000 lbs. and improved compaction rates when working with compact granular soils.

To maximize attachment reliability and durability, the motor is inset within the frame to protect it from damage. Hydraulic motor bearings use oil splash lubrication, and sealed eccentric bearings provide maintenance-free operation.

Delivering 4,000 lbs. of impulse force, the PC4 model is available in a 13-inch width. The PC7 delivers 6,400 lbs. of impulse force and is available in an 18-inch width. The PC10 model delivers 8,000 lbs. of impulse force and is available in a 24-inch width. All three models boast 2,000-rpm frequency at regulated flow.
